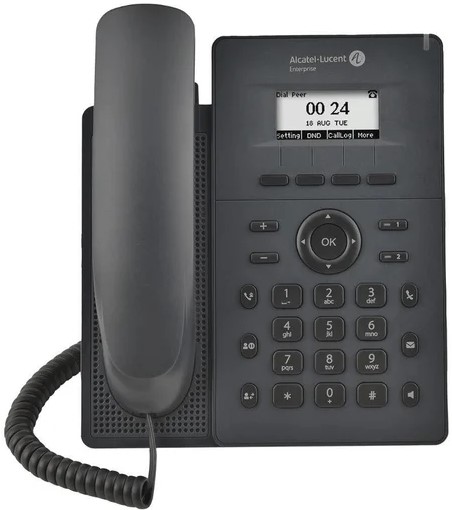

Alcatel-Lucent H2P 2-Line SIP Handheld Deskphone

Alcatel-Lucent H2P 2-Line SIP Handheld Deskphone – Adjustable foot stand 45° to 50°, 2.3 inches graphical black and white 128×64 LCD with backlight, 2 Line keys (Line 1/2) with LED, 4 menu keys, Volume control keys (+ and -), 4-way navigation + OK, Hands-free, mute, and message keys, Call hold, call transfer, and redial key, Dial pad Telephony features

Product Overview

The H2 and H2P DeskPhones from Alcatel-Lucent Enterprise are compact, modern SIP devices delivering a rich communication experience at a competitive price. They feature wideband HD audio, echo cancellation, a backlit display with 4 lines of text, a directory for up to 1000 contacts, call logs, navigation button, and 4 menu keys for ease of use. Ideal for small offices and hotel rooms, the H2P model supports Power over Ethernet (PoE) for flexible deployment and compatibility with major open SIP servers

Specifications

•Product Code: 3MK27005AA
•Description: Alcatel-Lucent H2P 2-Line SIP Handheld Deskphone

•Color: Gray
•Adjustable foot stand: 45° and 50°
•Wall mountable Display
•Visible area: 2.3 inches graphical black/white 128×64 LCD with backlight
•Viewing area (WxH): 53.2×25.8mm (2.1×1.0 inches) Keys
•2 Line keys (Line 1/2) with LED
•4 menu keys
•Volume control keys (+ and -)
•Navigator: 4-way navigation + OK
•Hands-free, mute, and message keys
•Call hold, call transfer, and redial key
•Dial pad Telephony features
•2 SIP accounts
•Call forward, call waiting, call transfer, call hold/resume, redial
•Mute/unmute, voicemail, DND, auto answer
•Local 3-party conference
•Call log (1000), local contacts (1000) Audio characteristics
•G.722, OPUS, iLBC
•G711 (A-law and Mu-law), G.729AB
•VAD (Voice Activity Detection), Comfort Noise Generation (CNG)
•Acoustic echo cancellation
•DTMF: In-Band, RFC2833, SIP INFO
•Hearing Aid Compatible (HAC) Power
•H2P: Power over Ethernet (IEEE 802.3af), Class 1
•External Power supply: 5V/0.6A (Optional accessory) Connectivity
•RJ-45 LAN: 10/100M Ethernet
•RJ-45 PC through 10/100M Ethernet switch
•RJ-9 connector for corded handset
•RJ-9 connector for headset Network and protocols
•SIP V2: RFC 2474, 2833, 3261, 3263, 3264, 3265, 3550, 4566, 5359, 6086 • Static IP and DHCP
•IPv4/IPv6
•LLDP-MED QoS: 802.1p/Q tagging (VLAN), Layer 3 TOS, DSCP
•TR069 Configuration
•Web-based management
•ALE Easy Provisioning Server (EPS)
•ALE Easy Deployment Server (EDS) Security
•H Series support OpenVPN
•Authentication: Basic or digest, 802.1x
•Denial of Service (DoS) attack protection: Flooding
•ARP Spoofing protection
•Transport: TLS 1.2/1.0 and SRTP
•Shipped with (X509v3) certificate installed ¬ Certificates for 802.1x EAP-TLS (either Alcatel-Lucent or customer certificates)
•Supporting SHA2 ALE Certificate, SCEP Languages
•ICES-003 Issue 6
•Telecom
•TIA/EIA 810-B, TIA 920.130-A-1, AS/ CA S004 Eco design
•ErP 2009/125/EC, WEEE 2012/19/EU • ROHS 2011/65/EU, CHINA ROHS 2: GBT 26572-2011
•REACH: European regulation: N° 1907/2006 • Proposition 65 • Packaging: EU Directive 94/62/EC Hearing aid compatibility
•FCC 47 CFR Part 68, Industry Canada CS-03, Australia AS/ACIF S040 Environmental Conditions
•Operating temperature: -5°C to +45°C
•Relative humidity: 5% to 95% • Storage/transportation temperature: -25°C/+70°C Accessories
•H2/H2P DeskPhone
•Wired wideband handset
•Foot stand
•3m Ethernet cable (cat5e)
•Safety sheet
•Quick user guide
