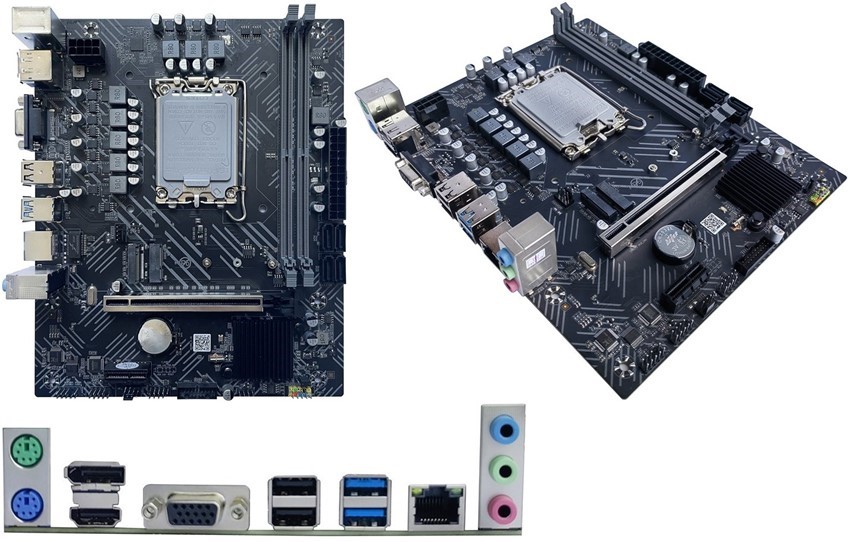

Arktek H610 LGA1700 ATX Motherboard

Arktek Intel H610 Motherboard – LGA1700 Socket, ATX Foam Factor, Dual Channel DDR4 Memory Support, Support Core i9/ i7/ i5/ i3 Processors, Integrated Graphics Processor- HD Graphics Support, 2 DIMM Memory Slots, Realtek 8111H 100M/1000Mbps Support Wake-Up on LAN, PXE Function, Built-In 6 Channel HD Audio Chip, Retail Box, 3 Years Warranty

Product Overview

The Intel H610 motherboard supports Intel LGA1700 Core i9/i7/i5/i3 processors with integrated Intel HD Graphics for reliable performance. It features dual-channel DDR4 memory support up to 2800MHz, 4 SATA 3.0 ports, and M.2 slots including SATA and Wi-Fi/Bluetooth. Connectivity includes Realtek Gigabit LAN, multiple USB 2.0/3.0 ports, onboard 6-channel HD audio, and PCIe slots for expansion.

Specifications

•Product Code: AK-H610M-EG
•Description: Arktek Intel H610 LGA1700 ATX Motherboad
•CPU Support: Supports Intel® Socket LGA1700 Core™I9/ i7/ i5/i3 processors
•Chipset: Intel H610 Chipset
•On-Board Graphics: Integrated Graphics Processor-Intel® HD Graphics support
•Memory: Dual Channel DDR4 2133/2400/2800MHz XMP overclock (Max. up to 32GB each)
•DIMM: 2 x Memory Slots
•LAN: Realtek 8111H 100M/1000Mbps Support wake-up on LAN, PXE function
•Audio: Built-in 6-channel HD audio chip
•Real I/O: 1 x PS/2 mouse port, 1 x PS/2 keyboard port,1 x DP port, 1 x VGA port, 1 x HDMI port, 2 x USB 2.0 port, 2 x USB 3.0 port, 1 x LAN jack, 3 x Audio jack
•Internal I/O: 1 x USB 2.0 header supports additional 2 USB 2.0 ports, 1 x USB 3.0 header supports additional 2 USB 3.0 ports
•SATA: 4 X SATA3.0 M.2 (1*M.2_SATA） 1*M.2 WIFI/Bluetooth Port
•Form Factor: ATX (22 x 18 cm)
•Expansion Slots: 1 x PCI Express x16 slot 1 *PCI Express x1 slot
•OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
•Mounting: 6 mounting holes
•Accessories: 1 x SATA cable, 1 x I/O Backboard, 1 x User Manual, 1 x Driver CD
