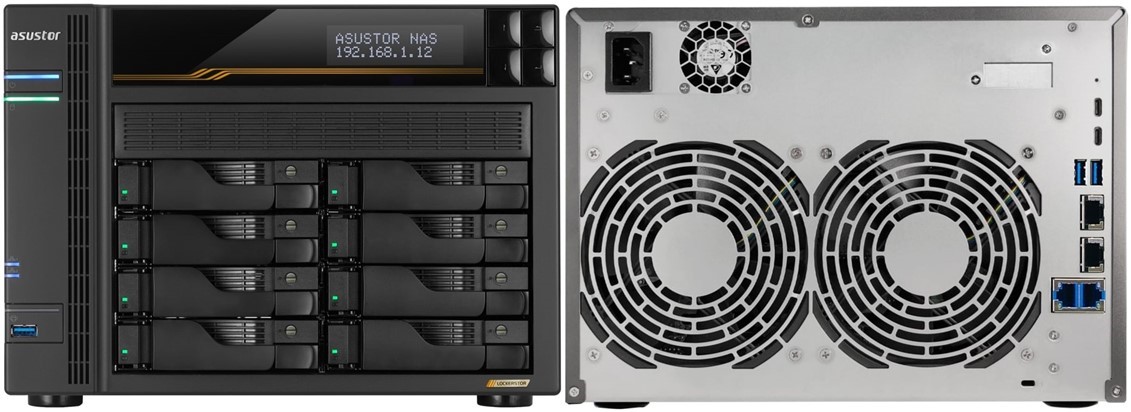

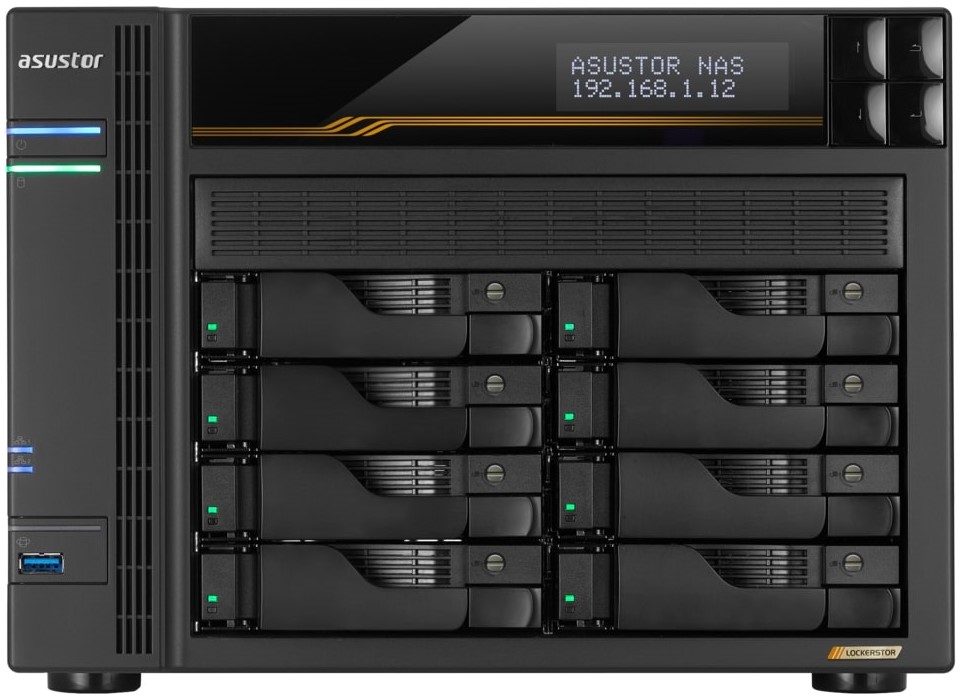

Asustor Lockerstor 8 Bay Gen 3 NAS Enclosure

Asustor Lockerstor 8 Gen 3 NAS Enclosure – Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz – 3.8 GHz Turbo, 16GB of server-grade DDR5-4800 ECC memory, Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0, 2x USB4 ports at 40 Gbps, 3x USB 3.2 Gen 2 Type-A at 10 Gbps, 2x 10-Gigabit Ethernet, 2x 5-Gigabit Ethernet, Supports Wake on LAN and Wake on WAN (5 GbE), Retail Box, 3 Years Warranty.

Product Overview

The ASUSTOR Lockerstor Gen3 NAS is powered by a quad-core AMD Ryzen Embedded V3C14 CPU with up to 3.8 GHz turbo, 16GB DDR5-4800 ECC memory (expandable to 64GB), and features four PCIe 4.0 M.2 slots for NVMe SSDs to deliver exceptional performance and reliability. It includes advanced connectivity with 2x USB4 ports at 40 Gbps, multiple USB 3.2 Gen 2 ports, and dual 10GbE plus dual 5GbE for high-speed networking. Enhanced security comes from ADM’s PQC Hybrid TLS encryption, safeguarding data against future quantum computing threats, making it a robust, future-proof NAS solution for demanding environments.

Features

•Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz – 3.8 GHz Turbo
•16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
•Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
•2x USB4 ports at 40 Gbps
•3x USB 3.2 Gen 2 Type-A at 10 Gbps
•2x 10-Gigabit Ethernet
•2x 5-Gigabit Ethernet
•Supports Wake on LAN and Wake on WAN (5 GbE)

Specifications

•Product Code: AS6808T
•Description: Asustor Lockerstor 8 Gen 3 NAS Enclosure
CPU
•CPU Model: AMD Ryzen V3C14
•CPU Architecture: x64 64-bit
•CPU Frequency: Quad-Core 2.3GHz (burst up 3.8 GHz)
Memory
•Memory: 16GB ECC DDR5-4800 SO-DIMM
•Memory Module Pre-installed: 16GB (1x 16GB)
•Total Memory Slots: 2
•Memory Expandable up to 64GB
•Support mixed capacity
•Supports ECC memory
•Flash Memory: 8GB eMMC
Storage
•Drive Bays: 8
•M.2 Drive Slots: 4
Compatible Drive Type
•3.5″ SATA HDD
•2.5″ SATA HDD
•2.5″ SATA SSD
•M.2 2280 NVMe
•M.2 PCIe Interface : PCIe 4.0 x1
•Maximum Drive Bays with Expansion Unit: 20
•Supports Hot Swappable Drives
Expansion
•3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A
•2x USB4 ports (20Gbps per channel, 40Gbps per port)
•Host-to-Host connectivity is not supported
•Backwards compatible with USB 3.2 Gen 1 and USB 3.2 Gen 1
Network
•2x 5 Gigabit Ethernet (5G/2.5G/1G/100M)
•2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)
•PCIe Expansion Slots: 1x for optional expansion 10 GbE card
•Multimedia Output: N/A
Others
•System Fan: 2x 120mm
•LCD Panel
•Power Supply Unit / Adapter: 250W x1
•Input Power Voltage: 100V to 240V AC
•Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
•Warranty: 3 Years
Operation
Power Consumption
•58.5 W (Operation);
•2.4 W (Sleep Mode)
•Noise Level: 22dB (HDD idle)
•Operation Temperature: 0°C~40°C (32°F~104°F)
•Storage Temperature: -20°C~70°C (-4°F~158°F)
•Humidity: 5% to 95% RH
•Size: 215.5(H) x 293(W) x 230(D) mm
•Weight: 6.45 kg / 14.22 lb
