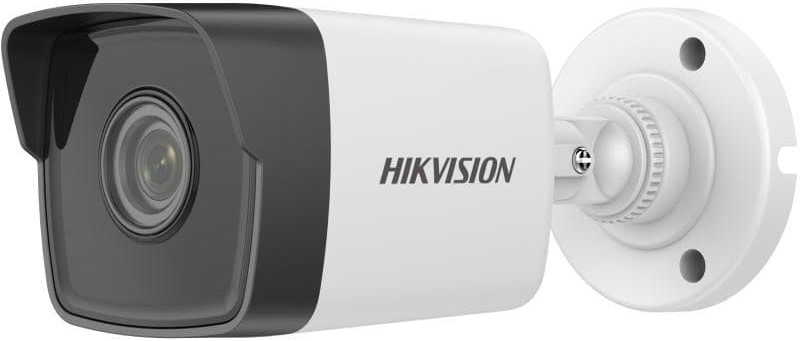

Hikvision 2 MP Fixed Bullet Network Camera

Hikvision 2 MP Fixed Bullet Network Camera – High quality imaging with 2 MP resolution, Efficient H.265+ compression technology, Clear imaging against strong back light due to DWDR technology, Water and dust resistant, advanced infrared technology with long IR range, Retail Box, 6 Months Warranty

Product Overview

The Hikvision 2 MP Fixed Bullet Network Camera features a 2.8 mm or 4 mm fixed lens with wide horizontal FOV of 112.1° or 90.2°, delivering clear 1080p video at 25/30fps using H.265/H.264 compression. Equipped with IR illuminator reaching up to 30m and advanced imaging features like Digital WDR and 3D DNR, it ensures superior image quality in various lighting conditions. Designed for durability with an IP67 rating, it supports PoE power and multiple network protocols for flexible, reliable outdoor surveillance.

Features

•High quality imaging with 2 MP resolution
•Efficient H.265+ compression technology
•Clear imaging against strong back light due to DWDR technology
•Water and dust resistant (IP67)
•EXIR 2.0: advanced infrared technology with long IR range

Specifications

•Product Code: DS-2CD1023G0E-I
•Description: Hikvision 2 MP Fixed Bullet Network Camera
•Image Sensor: 1/2.7″ Progressive Scan CMOS
•Max. Resolution: 1920 × 1080
•Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
•Shutter Time: 1/3 s to 1/100, 000 s
•Day & Night: IR cut filter
•Angle Adjustment
•Pan: 0° to 360°
•tilt: 0° to 180°
•rotate: 0° to 360°
Lens
•Focal Length & FOV
•2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
•4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
•Lens Mount: M12
•Iris Type: Fixed
•Aperture: F2.0
Illuminator
•Supplement Light Type: IR
•Supplement Light Range: Up to 30 m
•Smart Supplement Light: Yes
•IR Wavelength: 850 nm
Video
Main Stream
•50 Hz: 25 fps (1920 × 1080, 1280 × 720)
•60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
•50 Hz: 25 fps (640 × 480, 640 × 360)
•60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
•Main Stream: H.265/H.264/H.264+/H.265+
•Sub-Stream: H.265/H.264/MJPEG
•Video Bit Rate: 32 Kbps to 8 Mbps
•H.264 Type: Baseline Profile/Main Profile/High Profile
•H.265 Type: Main Profile
•Region of Interest (ROI): 1 fixed region for main stream
Network
•Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
•Simultaneous Live View: Up to 6 channels
•API: Open Network Video Interface, ISAPI
•User/Host: Up to 32 users. 3 levels: administrator, operator and user
•Client: iVMS-4200, Hik-Connect
Web Browser
•Plug-in required live view: IE 10+
•Plug-in free live view: Chrome 57.0+, Firefox 52.0+
•Local service: Chrome 57.0+, Firefox 52.0+
•Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
•Day/Night Switch: Day, Night, Auto, Schedule
•Wide Dynamic Range (WDR): Digital WDR
•SNR: ≥ 52 dB
•Image Enhancement: BLC, 3D DNR
•Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
•Basic Event: Motion detection, video tampering alarm, exception
•Linkage: Upload to FTP, notify surveillance center, send email
General
•Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
•PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
