Intellinet Dual Band Ceiling Mount Antenna

Intellinet Dual Band Ceiling Mount Antenna – Frequency Bands 2.4 GHz / 5.0 GHz dual-band support, Antenna Gain 4 dBi (max), 3 dBi at 2.4 GHz, Omni-directional antenna type, Vertical polarization, Connector RP-SMA plug, Power Handling 1 Watt, Impedance 50 Ohms, Cable Length approx. 30 cm (1 ft), Dimensions 125 mm width x 130 mm depth, Weight 200 grams, Environmental Rating IP65 ), Warranty 2 years limited,Retail box

Product overview

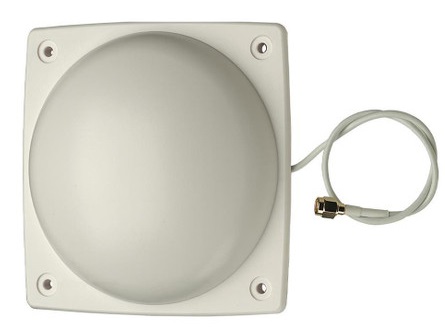

This ceiling mount antenna offers 360-degree beam width for uniform wireless coverage, making it ideal for office or conference room environments. Its low-profile design blends well with indoor ceilings or solid surface mounts. The dual-band feature supports both common wireless bands, eliminating the need for multiple antennas for different frequencies. It is compatible with wireless access points and routers using RP-SMA connectors. The IP65 rating ensures durability against dust and water exposure indoors and in protected outdoor areas.

Specifications

Product Code : 524025

Product Description : Intellinet Dual Band Ceiling Mount Antenna

Frequency Bands: 2.4 GHz / 5.0 GHz dual-band support

Antenna Gain: 4 dBi (maximum), 3 dBi at 2.4 GHz

Antenna Type: Omni-directional

Polarization: Vertical polarization

Connector Type: RP-SMA plug

Power Handling: 1 Watt

Impedance: 50 Ohms

Cable Length: Approximately 30 cm (1 ft.)

Dimensions: Width 125 mm, Depth 130 mm

Weight: 200 grams

Environmental Rating: IP65 (dust tight and protected against water jets)

Warranty: 2 years limited

Packaging: Retail box
