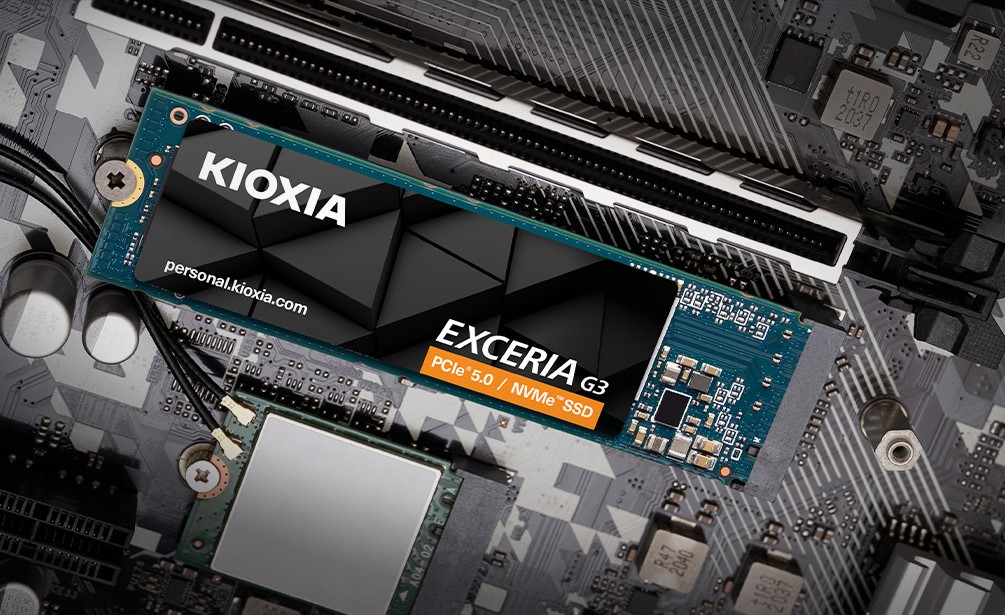

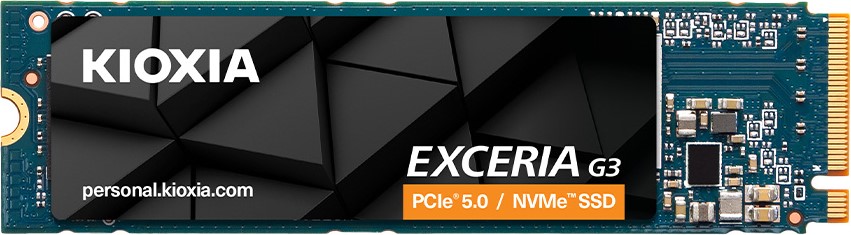

Kioxia Exceria G3 M.2 PCIe 5.0 1TB SSD

Kioxia Exceria G3 M.2 PCIe SSD – 1TB Capacity, M.2 2280-S3-M Form Factor, PCIe 5.0 Interface, BiCS Flash Memory Type, Up to 10, 000Mbps Max Sequential Read Speed, Up to 8,900Mbps Max Sequential Write Speed, 600TBW Endurance, 0 ℃ (Ta) to 85 ℃ (Tc) Operating Temperature, Retail Box, 3 Years Warranty.

Product Overview

Kioxia Exceria G3 1TB M.2 PCIe 5.0 SSD x4 interface (NVMe 2.0c), delivering up to 10,000 MB/s sequential read and 8,900 MB/s write speeds, plus 1,300K/1,450K random read/write IOPS using BiCS QLC flash in a compact M.2 2280 form factor.​ Built for endurance with 600TBW, 1.5M hours MTTF, 5.5W active power draw (3.3V), and robust vibration resistance (20G peak), it operates reliably from 0-85°C—ideal for high-performance storage alongside your DDR5 and networking upgrades. Perfect for gamers and IT pros, this 5.7g drive offers next-gen speeds to slash load times in gaming rigs or data-heavy workflows, with full compatibility for modern motherboards.

Features

•BiCS FLASH™
•NVMe™ 2.0c Technology
•M.2 2280 Form Factor
•PCIe® Gen5 x4
•SSD Utility Management Software
•Advanced Heat Dissipation
•Cutting-Edge 3D Flash Memory

Specifications

•Product Code: LVC10Z001TG8
•Description: Kioxia Express G3 M.2 PCIe 5.0 SSD
•Capacity: 1TB
•Form Factor: M.2 Type 2280-S3-M
•Interface: PCI Express Base Specification Revision 5.0
•Flash Memory Type: BiCS FLASH QLC
•Interface Maximum Speed: 128 GT/s (PCIe® Gen5x4)
•Interface Protocol: NVM Express™ Base Specification 2.0c
•Max Sequential Read Speed: 10,000 MB/s
•Max Sequential Write Speed: 8,900 MB/s
•Max Random Read Speed: 1,300,000 IOPS
•Max Random Write Speed: 1,450,000 IOPS
•Endurance: 600TBW
•MTTF: 1.5 million hours
•Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)
•Storage Temperature: -40 ℃ to 85 ℃
•Certification: RoHS compliant
•Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
•Vibration: 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
•Supply Voltage: 3.3 V ±5 %
•Power Consumption: 5.5 W (typ.)
•Dimension (Max: LxWxH): 80.15 x 22.15 x 2.38 mm
•Weight: 5.7 g (typ.)
