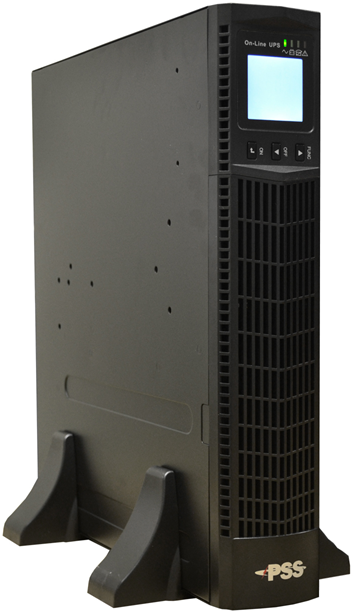

M Series 2KVA Online Rack Tower Mount UPS

PSS M Series 2KVA True Online UPS- Rack Mount Or Tower Conversion Design, Single Phase With Ground, Input and Output Voltage 230V, Power Factor: 0.9, Capacity: 2KVA, 1800W, Voltage Range: 200-290VAC At Full Load, Frequency Range: 40-70Hz, Economic Operation Mode, Hot-Swappable Battery Pack, Full LCD Digital Display Control (DSP), 4 x 12V 9Ah Lead Acid Batteries , Rated Battery Voltage 48VDC , Colour Black, Retail Box , 12 Months Warranty

Product Overview

The PSS M Series 2KVA-48V True Online UPS is a Sleek in design, these true online UPS’s provide the best protection for your expensive server room equipment. The double conversion technology makes this unit and excellent stabilizer for power. Pure sine wave is always provided, whether on the mains or battery. The standard unit comes with 10 minute internal batteries, alternatively, battery banks can be Provided to supply up to 4 hours runtime. Designed for the server room environment, you will have to look far to find a better unit.

APPLICATION
PC’s, Workstations, Network Centres, SOHO, Servers, Industry Equipment, Medical Equipment or Other Critical Systems

Features

•Optimized Battery Configuration: 2KVA-48V
•Emergency Shutdown Through Remote Emergency Power-Off (EPO)
•Port Three Segment Charging Mode To Increase Battery Service Life
•Optimize Recharge Time Diverse Options Of Accessories, Intelligent Management
•Intelligent Slot – Optional SNMP/Dry Contact Board Input Neutral And Live Wires Reverse Detection
•Economic Operation Mode (ECO
•Wide Input Voltage Range
•Self-Testing On UPS Start-Up
•Cold Start (DC) Output Voltage Can Be Set
•Full Digital Control (DSP) M-Series On-Line UPS
•Design: Sleek, True On-Line UPS With Double Conversion Technology For Power Stabilization.
•Output: Pure Sine Wave On Mains Or Battery.
•Runtime: Internal Batteries Or Extended Battery Banks For Up To 4 Hours.

Specifications

•Product Code: M2RT
•Description: M Series 2KVA Online Rack/Tower UPS
•Capacity: 2KVA (1800W)
•Voltage Range: 200-290VAC at full load
•Frequency Range: 40-70Hz
•Efficiency: Up to 94% in ECO mode
•Battery Type: 12V/9Ah x 4
•Recharge Time: 5 hours
•Noise Level: <55dB at 1 meter
•Operating Environment: 0-40°C, 0-90% relative humidity (non-condensing) Additional Information:
•Audible alarms for battery mode, low battery, overload, and faults.
•Dimensions: 440 x 560 x 86.5mm
•Net/Gross Weight: 28.5 / 31 Kg
•Package dimensions and weights provided for each model.
•Safety certifications and modular connectors included.
