Mercusys 8 Port Gigabit Desktop Switch

Mercusys 8 Port Gigabit Desktop Switch – 8 x 10/100/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX Interface, 4Mbit Buffer Capacity, 15KB Jumbo Frame, Store and Forward Transfer Method, 5V/0.6A External Power Power Supply, Ethernet Port LED and Power LED, Retail Box, 6 Months Warranty.

Product Overview

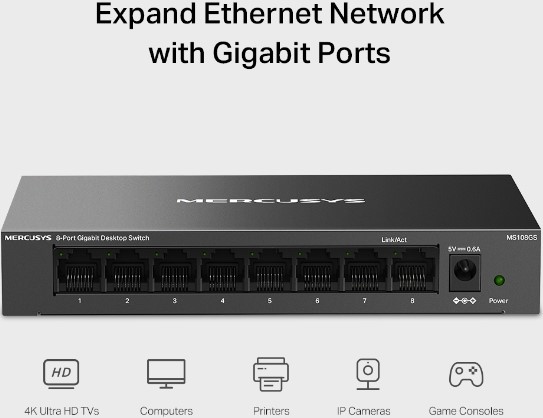

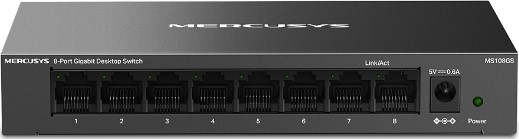

The Mercusys 8-Port Gigabit Desktop Switch delivers reliable wired networking with 8 auto-negotiating 10/100/1000Mbps ports supporting Auto-MDI/MDIX for plug-and-play setup. It uses a store-and-forward transfer method, IEEE 802.3/802.3u/802.3x standards, a 4 Mbit buffer, 15KB jumbo frames, and full-duplex speeds up to 2000Mbps. Compact at 6.2 × 3.9 × 1.0 inches with a 5V/0.6A external power supply, it features per-port and power LEDs for simple monitoring in home or office environments.

Features

•Full Gigabit Ports: 8× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
•Multiple Installation Operation: Steel housing, desktop or wall-mounting design
•Durable Metal Casing: Allows for efficient heat dissipation and long network life
•Plug and Play: Simple to use and saves time and effort
•Power Saving: Green Ethernet technology saves power

Specifications

•Product Code: MS108GS
•Description: Mercusys 8-Port Gigabit Desktop Switch
•Transfer Method: Store and Forward
•Interfaces: 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
•External Power Supply: 5V/0.6A
•Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates
•10/100/1000Mbps at Half Duplex
•20/200/2000Mbps at Full Duplex
•Buffer Capacity: 4 Mbit
•Jumbo Frame: 15 KB
•LED: Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
