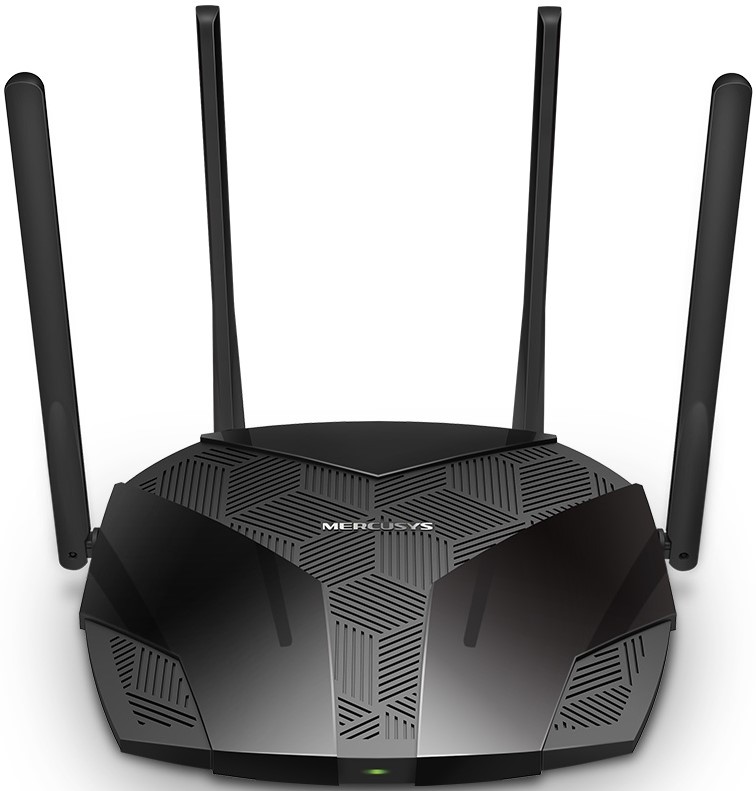

Mercusys AX3000 Dual Band WiFi 6 Router

Mercusys AX3000 Dual-Band Wi-Fi 6 Router – Optimal WiFi 6 Speeds Up to 3Gbps, Supports MU-MIMO and OFDMA, Up to 574Mbps on 2.4GHz and 2402Mbps on 5GHz, 160MHz Max Channel Width, Guest Network, Smart Connect, Wireless Schedule, WPS, AP Isolation, Airtime Fairness, 1x GE WAN and 3 x GE LAN Interfaces, 2 x 5G External Antennas(5dBi), 2 x 2.4GHz External Antennas(5dBi), Router and AP Mode, IPv4 and IPv6 Protocols, 0°C~40°C (32°F~104°F) Operating Temperature, Retail Box, 6 Months Warranty.

Product Overview

Mercusys MR80X AX3000 Dual-Band Wi-Fi 6 Router Blazing-fast AX3000 speeds (2402 Mbps on 5GHz + 574 Mbps on 2.4GHz) with 802.11ax/ac/a/b/g/n compatibility, 4×5dBi antennas, and superior reception sensitivity (up to -97dBm). Equipped with 1 Gigabit WAN + 3 Gigabit LAN ports, WPA3 security, guest networks, VPN server (OpenVPN/PPTP), SPI firewall, and easy setup via WPS/reset button. Compact design (8.2 × 6.8 × 1.6 in) for reliable home coverage in 0–40°C environments—includes power adapter, Ethernet cable, and quick guide.

Specifications

•Product Code: MR80X
•Description: Mercusys AX3000 Dual-Band Wi-Fi 6 Router
•Wi-Fi(2.4GHz): 574Mbps
•Wi-Fi(5GHz): 2402Mbps
•Wireless Standards: 802.11ax/ac/a/b/g/n
•Max Channel Width: 160MHZ
Reception Sensitivity:
•5G:
•11a 6Mbps:-97dBm
•11a 54Mbps:-79dBm
•11ac VHT20 MCS8:-75dBm
•11ac VHT40 MCS8:-71dBm
•11ac VHT80 MCS8:-67dBm
•11ax VHT20 MCS11:-67dBm
•11ax VHT40 MCS11:-64dBm
•11ax VHT80 MCS11:-61dBm
•2.4G:
•11g 6Mbps: -97dBm
•11g 54Mbps: -79dBm
•11n HT40 MCS7:-74dBm
•11n HT20 MCS7:-77dBm
•Max WiFi Modulation: 1024 QAM
•Wireless Security: WPA/WPA2/WPA3
Wireless Functions
•Guest Network
•Smart Connect
•Wireless Schedule
•WPS
•AP Isolation
•Airtime Fairness
•Interfaces: 1 x GE WAN, 3 x GE LAN
Antenna
•2× 5G External Antennas(5dBi)
•2× 2.4G External Antennas(5dBi)
•Button: 1 x WPS/Reset Button
•Installation: Desktop, Wall-Mount
•LED: 1 x SYS
•Units Per Carton: 10
•Carton Dimension: 590 x 400 x 345mm
Power
•Input：100~240V, 50/60Hz
•Output: 12V/1.5A
•Operation Mode: Router/AP mode

WAN Mode
•Dynamic IP
•Static IP
•PPPoE
•PPTP
•L2TP
NAT Forwarding
•Port Forwarding
•Port Triggering
•DMZ
•UPnP
Protocols
•IPv4
•IPv6
IPTV
•IGMP Proxy
•IGMP Snooping
•Bridge
•Tag VLAN
Guest Network
•2.4G Guest Network
•5G Guest Network
Parental Controls
•Profile Settings
•Time Control
•Pause the Internet
•Website Filtering
DHCP
•Address Reservation
•DHCP Client List
•Server
DDNS
•MERCUSYS
•NO-IP
•DynDNS

Security
•SPI Firewall
•Access Control
•IP & MAC Binding
System
•Firmware Upgrade
•Backup and Restore
•Administration
•System Log
•Time & Language Settings
•Reboot
LED Management
•LED Control
•Night Mode
Advanced Features
•OFDMA
•BSS Color
•Beamforming
Environment
•Operating Temperature: 0°C~40°C (32°F~104°F)
•Operating Humidity: 10%~90% Non-Condensing
•Storage Humidity: 5%~90% Non-Condensing
