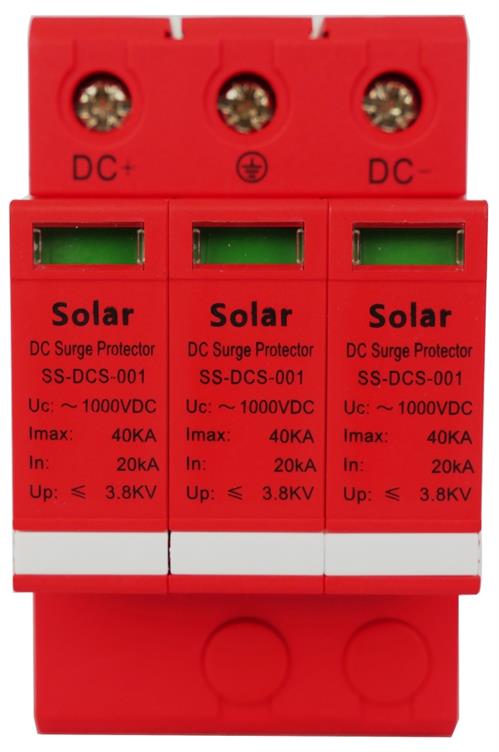

Solarix DC Surge Protector Device

Solarix DC Surge Protector Device – Designed To Protect And Minimize The Potential Impact Of Direct And Indirect Lightning Events on Solar Panels PV Installations, Should Be Installed On The DC Side Of The PV System, Before The Inverter, Widely Used In PV DC Combiner Box, Inverter, Controller And PV DC Cabinet, Please Do Not Use Install It With AC Circuits, Ensure Proper Earthing When Installing, Din Rail Mount Installation, Retail Box, No warranty

Product Overview
The Solarix DC Surge Protector Device is designed to protect and minimize the potential impact of direct and indirect lightning events on Solar Panels PV Installations. These units must be installed in parallel on the DC networks to be protected and provide protection. Its installed location are recommended at both ends of the DC power supply line ( solar panel side and inverter/converter side), especially if the line routing is external and long. , It is widely used widely used in PV  DC Combiner Boxes, Inverter, Controller and PV DC cabinets, Suitable For Use In All Photovoltaic Systems. Din Rail  Mount Installation.



Specifications
• Stock Code SOLSSDCS001
• Description Solarix DC Surge Protector Device
• Product Type DC Surge Protection Devices (SPD) On Solar Panels PV Installations
• Protect And Minimize The Potential Impact Of Direct And Indirect Lightning Events
• Should Be Installed On The DC Side Of The PV System
• Classified Test Type II
• Response Time Of Less Than 25ns (Nano Second)
• Nominal Discharge Current (In):20KA
• Maximum  Continuous Operating Voltage (Uc) 1000VDC
• Maximum Discharge Current (Imax.):40KA
• Maximum Voltage Protection Level( Up): ≤3.8KV
• Compatible With DC Circuits Only
• Please Do Not Use Install  It With AC Circuits
• Ensure Proper Earthing When Installing
• Din Rail  Mount Installation
