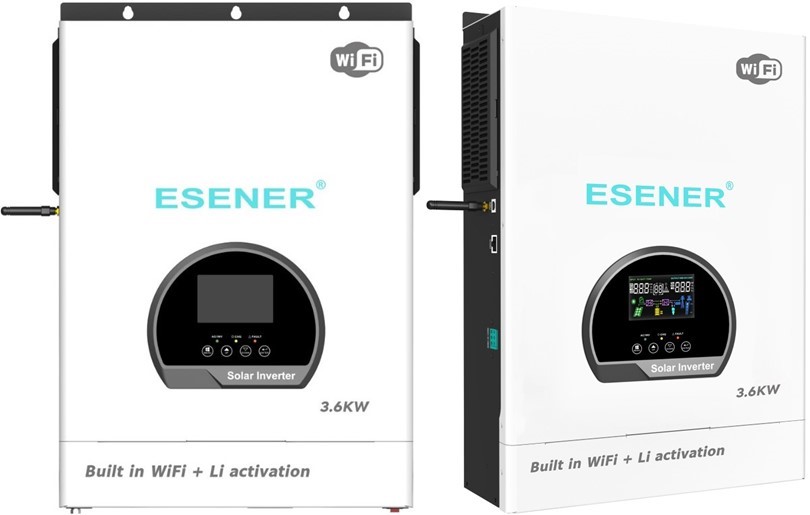

Solarix Esener 3600VA 24VDC 100A Pure Sine Wave Inverter

Solarix Esener 3600VA 24VDC 100A Pure Sine Wave Inverter- Off-Grid Solar Inverter, Rated Power 3600va / 3600w Max Watt Output , 100A MPPT Solar Charge Controller, MPPT Voltage Range 30-320VDC, Maximum MPPT Power 4000w , Maximum Charge Current 100A , Design To Provide Reliable Power, Retail Box, 1 Year Warranty

Product Overview
The latest Solarix Esener Branded 3.6KW 60A 24VDC Pure Sine Wave Solar Inverter is designed to provide a reliable backup power solution for homes and small business office environment installations. Equipped with a 100A MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. The pure sine wave output enables easy start-ups for motor-type loads such as refrigerators, motors, pumps. Compressors up to 2hp and laser printers as well as electronic loads like TVs. Computers. Power tool and battery chargers. Design To Provide Reliable Power. Batteries And Solar Panels Are Not Included.

Features
•Pure Sine Wave Output: Delivers stable energy for all types of electrical loads.
•Built-in WiFi & Bluetooth: Enables real-time remote monitoring for complete control.
•BMS Communication (CAN): Ensures seamless communication with lithium battery systems.
•Lithium Activation Function: Revives batteries from protection mode.
•Dual Output for Smart Load Management: Efficiently manages critical and non-critical loads.
•Smart Colored LCD Screen: Allows easy adjustment of settings and real-time system monitoring.
•Advanced Protection: Overload, short circuit, and deep discharge safeguards for reliability.
•Cold Start Function: Enables the inverter to start without a battery, allowing bypass functionality.
•Comprehensive Monitoring: Supports USB, CAN, and RS485 for flexible system management.
•Maximum PV Array Power: Supports up to 4000W.
•MPPT Voltage Range: Wide range of 30-320VDC.

Specifications
•Stock Code: SOLES3624VPSW
•Description: Solarix Esener 3KVA 24VDC 100A Inverter
•Operating Temperature Range: -10℃ to 50℃
•Protection Class: Class I
•Protection Degree: IP 20
Inverter Mode
•Rated Power: 3600VA/3600W
•Battery Mode: 3000VA/3000W
•DC Input: 24VDC, 135A
•AC Output: 230VAC, 50/60Hz, 15.7A
AC Charger Mode
•AC Input: 230VAC, 50/60Hz, 17.7A
•DC Output: 24VDC, 100A
Solar Charger Mode
•Rated MPPT Charger Current: 100A
•MPPT Voltage Range(typ): 30~320VDC
•Max.Solar Voltage(VOC): 400VDC
•Max.MPPT Power: 4000W
•Max.Charger Current: 100A
