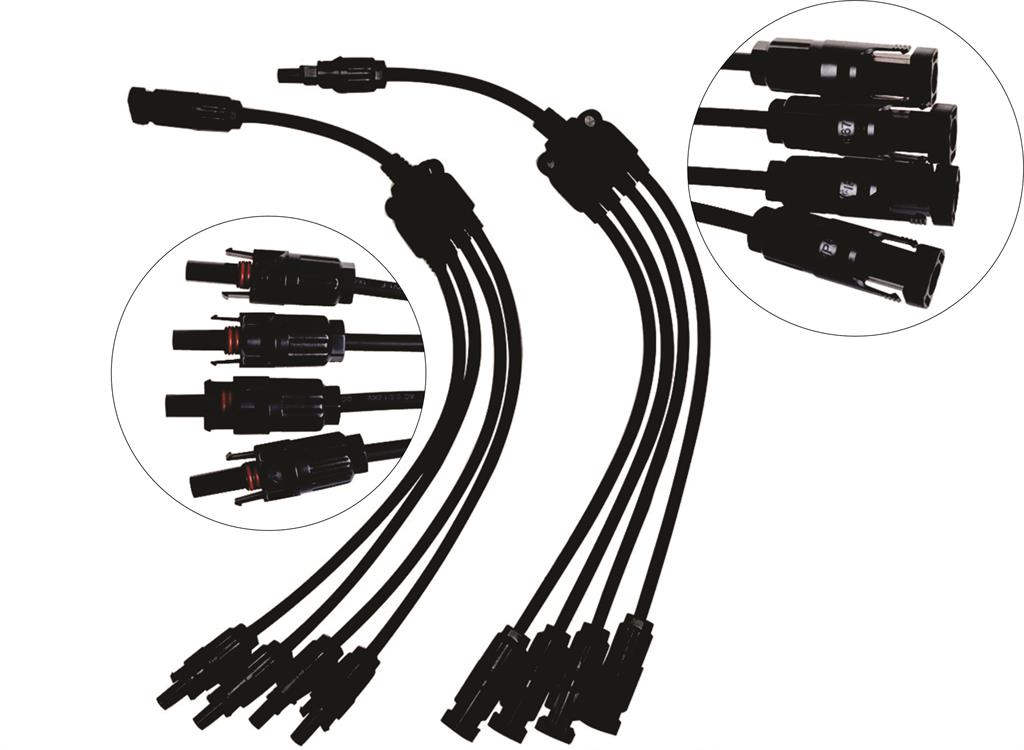

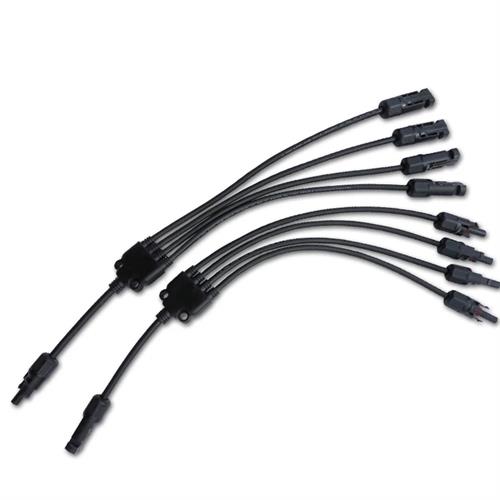

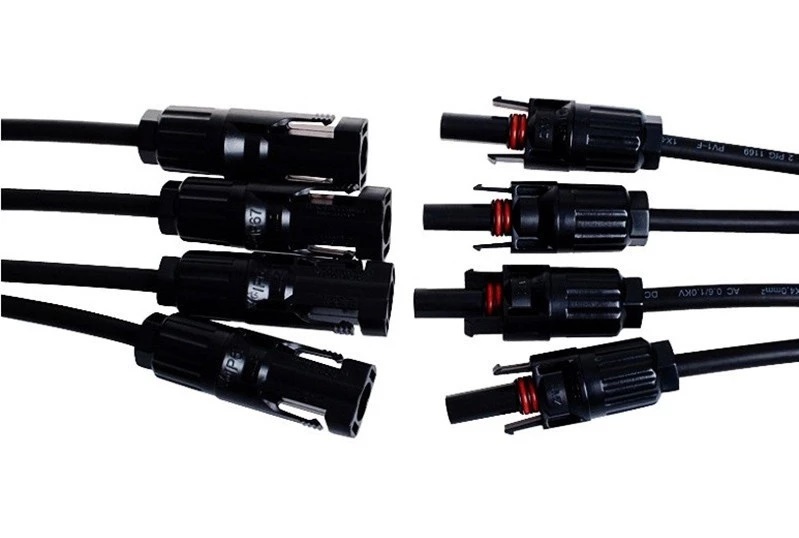

Solarix Y Connector 4 Way To 1 Way Solar Panel Combiner Cable Set

The Solarix MC4 Y Branch Connector 4 Way To 1 Way Combiner Cable Set is used for connecting solar panels in series or parallel and ideal for connecting solar panels together. It allows you to connect 4 independent input/output connectors into a single MC4 connector on the opposite side of your solar panel. This allows you a simple way to connect or expand multiple solar panels together without running cables, making installation easier and faster than ever before with the easy to Install Snap-in lock system. Allow for a clean energy transfer between output cables from the solar array and connections to combiner boxes or inverters. This MC4 Y 4-1 Branch Connector is compatible with the MC4 connector, for connecting your solar panels to a charge controller or inverter.

• MC4 Y Branch Connector 4 Way To 1 Way Combiner Cable Set

• Easy To Install Snap-in lock Connector System

• 4-In 1-Out Connector Cable

• Tested Voltage Up 1000V DC

• 4 mm Diameter Contact Pin

• Used For Connecting Solar Panels In Series Or Parallel

• Connect 4 Independent Input / Output Connectors Into A Single MC4 Connector

• Degree Of Protection: IP2X/IP67

• Stock Code SOLPAMY041

• Description Solarix MC4 Y Connector 4 Way To 1 Way Combiner Cable Set

• Product Type MC4 4-Way PV Solar Panel Y-Combiner Cable Pair

• Overvoltage Type/Pollution Degree:6000V(50Hz, 1min).

• Contact Resistance Of Plug Connector: CAT III /2.

• Contact Resistance Of Plug Connector:≤0.5mΩ.

• Contact Material: Copper, Tin-plated.

• Protection: IP2X/IP67

• Snap-In Connector Locks System

• Voltage Rating 1000VDC

• Colour Black
