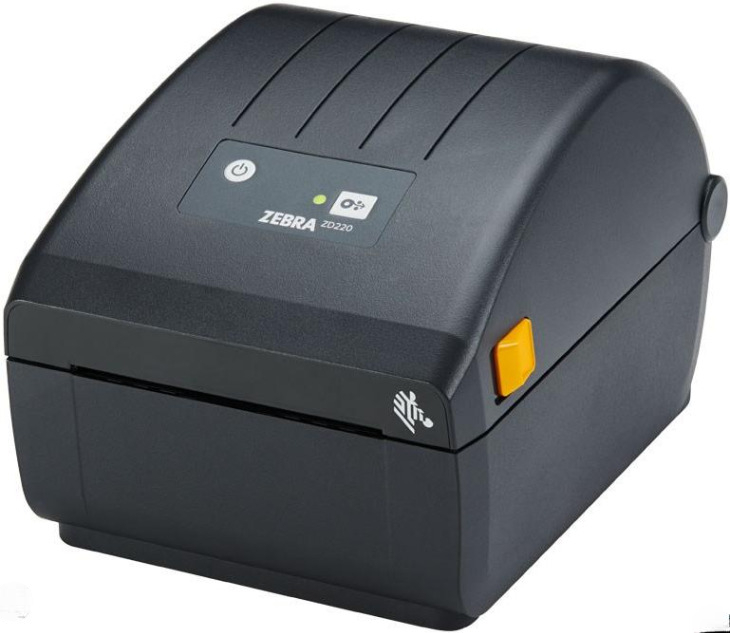

Zebra ZD2204 USB Direct Thermal Printer

Zebra ZD2204 Desktop Direct Thermal Printer – 203 dpi / 8 dots per mm Resolution, 128MB SDRAM Memory, 104mm Maximum Print Width, 102mm Per Second Print Speed, Movable Black Mark Sensor, ZPL and EPL Programming Languages, Single LED Status Indicator, USB Connectivity, Dual-Wall Frame Construction, Retail Box, 1 Year Warranty.

Product Overview

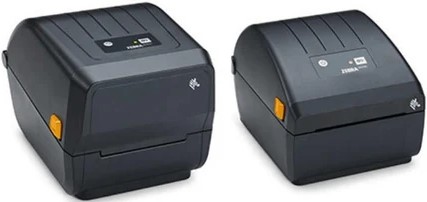

Zebra ZD220 4‑inch Desktop Direct Thermal Printer Compact desktop printer that supports both direct thermal and thermal transfer methods, with 203 dpi resolution and a 4.09 in. (104 mm) maximum print width at up to 4 in./102 mm per second. Equipped with USB connectivity, OpenACCESS™ media loading, and dual‑wall frame construction, it runs ZPL II / EPL 2 firmware with 128 MB Flash and 128 MB SDRAM for reliable label and barcode printing. Ideal for light‑to‑medium duty environments, it features ENERGY STAR qualification, simple single‑button feed/pause, and movable black‑mark plus fixed gap sensors for flexible media handling.

Features

•Print methods: Thermal Transfer or Direct Thermal
•ZPL and EPL programming languages
•Single LED status indicator
•Single button for feed/pause
•USB connectivity
•OpenACCESS™ for easy media loading
•Dual-wall frame construction
•ENERGY STAR qualified

Specifications

•Product Code: ZD22042-D0EG00EZ
•Description: Zebra Direct Thermal Printer
•Resolution: 203 dpi/8 dots per mm
•Memory: 128 MB Flash; 128 MB SDRAM
•Maximum Print Width: 4.09 in./104 mm
•Print Speed: 4 in./102 mm per second
•Media Sensors: Movable black mark sensor, limited range from center to left side
•Fixed off-center gap sensor
•Firmware: ZPL II; EPL 2; XML
•Maximum Label Length: 39.0 in./991 mm
•Media Width: 1.00 in./25.4 mm to 4.4 in./112 mm
•Media Roll Size: 5.00 in./127 mm outer diameter
•Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) using optional adapters
•Thickness: 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
•Media Types: Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
•Ribbon Outside Diameter: 1.34 in./34 mm (74 m)
•Maximum Ribbon Length: 244 ft. (74 m)
•Ribbon Ratio: 1:1 ribbon to media (74 m)
•Ribbon Width: 1.33 in./33.8 mm-4.3 in./109.2 mm
•Ribbon Core I.D: 74 meter ribbon 0.5 in./12.7 mm
•Operating Temp: 40° to 105° F/4.4° to 41° C
•Storage Temp: -40° to 140° F/-40° to 60° C
•Operating Humidity: 10% to 90% non-condensing
•Storage Humidity: 5% to 95% non-condensing
•Electrical: Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
