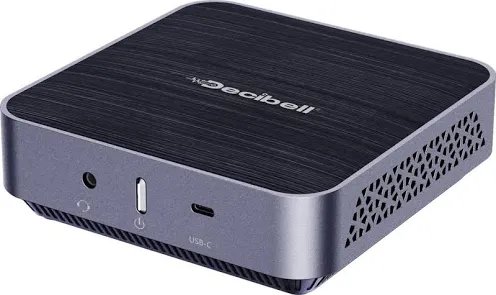

Decibell AM02 AMD Ryzen 7 Professional Mini Desktop

Decibell AM02 Mini Desktop PC – AMD Ryzen 7 3700 Proessor (8 Cores, 16 Threads), 8GB SODIMM DDR4 Memory, 3200MHz Memory Frequency, 512GB M.2 2280 SSD, AMD Radeon Graphics, WiFi 5& Bluetooth 5.2 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.

Product Overview

Decibell AMD Ryzen 7 3700 Mini PC Power through demanding tasks with an 8-core/16-thread AMD Ryzen 7 3700 processor from the Ryzen 3000 series, paired with integrated Radeon Graphics, dual-channel DDR4 up to 64GB at 3200MHz, and flexible storage options including NVMe M.2 SSD (up to 2TB) plus a 2.5-inch SATA bay. Stay connected via WiFi 6 (802.11ax), Bluetooth 5.2, Gigabit Ethernet, and versatile I/O: 3x USB 3.2 Gen2, 1x USB 2.0, HDMI 2.0/DP 1.4 for dual 4K@60Hz displays, Type-C data port, and 3.5mm audio jack in a compact 123.5 x 123.5 x 40mm plastic-metal chassis. Enterprise-ready features include TPM 2.0 support, UEFI diskless boot, BIOS timed power-on, real-time clock, and status LED, powered by a 5.5/2.1mm DC jack—ideal for home offices, digital signage, or edge computing setups.

Specifications

•Product Code: AM02-R7-3700-8GB-512
•Description: Decibell AM02 Desktop Mini PC
•Form Factor: Desktop Mini PC
•Dimensions: 123.5mm × 123.5mm × 40mm
•Case Material: Plastic with metal
•CPU Model: AMD Ryzen 7 3700
•Series: Ryzen 3000 Series
•Codename: Matisse
•Cores: 8
•Threads: 16
•Integrated TPM: TPM 2.0 supported
•GPU Model: AMD Radeon™ Graphics
•Type: DDR4 SODIMM (Dual Channel)
•Speed: 3200MHz
•Capacity: 8GB (expandable up to 64GB)
•Installed Storage: 512GB SSD
•Max Storage Support: Up to 2TB SSD
•SSD Interface: NVMe & NGFF / SATA 3.0
•2.5″ HDD Slot: 1 x supported
•TF Card Slot: Not supported
BIOS Features
•Real-time clock support
•Timed power-on
•Automatic power-on after power failure
•UEFI diskless boot support
•LAN: 1 x Gigabit Ethernet (10/100/1000 Mbps)
•WiFi: Dual-band 2.4GHz & 5GHz (WiFi 5 / WiFi 6 support)
•WiFi Standards: IEEE 802.11 a/b/g/n/ac/ax
•Bluetooth: 4.2 / 5.2 supported
•SIM Support: Not supported
Ports & Connectivity
•USB 2.0: 1 x Type-A (480Mbps)
•USB 3.2 Gen 2: 3 x Type-A (10Gbps)
•USB Type-C: 1 x (data transfer only, 5Gbps)
•HDMI: 1 x HDMI 2.0 (4K @ 60Hz)
•DisplayPort: 1 x DP 1.4 (4K @ 60Hz)
•Audio: 1 x 3.5mm combo jack (headphone/mic)
•RJ45 Ethernet: 1 x Gigabit port
Display Support
•Dual display output (HDMI + DP)
•Supports simultaneous two-screen display
•Maximum resolution: 4K @ 60Hz
Power
•Power Input: DC 5.5mm / 2.1mm jack
•Power Button: 1 x
