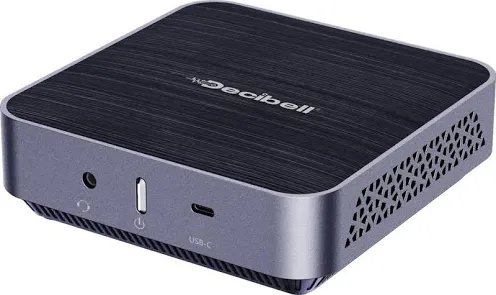

Decibell AM02 Pro AMD Ryzen 7 Professional Mini Desktop

Decibell AM02 Pro Mini Desktop Pc – AMD Ryzen 7 5700 (8 Cores, 16 Threads) L2 Cache 2MB, L3 Cache 8MB, 4.3GHz Frequency, 8GB DDR4 SODIMM Up to 64GB Memory, 512GB M.2 SSD, AMD Radeon Graphics, WiFi 5& Bluetooth 5.2 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.

Product Overview

Decibell Mini-PC AMD Ryzen 7 5700U This ultra-compact (123.5×123.5x40mm plastic/metal chassis) powerhouse features an 8-core/16-thread Ryzen 7 5700U (up to 4.3GHz, 15W TDP, 7nm TSMC) with 8-core Radeon Graphics (1900MHz) and 12MB total cache for smooth multitasking, 4K dual-display (HDMI 2.0 + DP 1.4), and light creative workloads. Dual-channel DDR4 SODIMM up to 64GB (3200MHz), expandable storage via 1x NVMe/NGFF SATA SSD (up to 2TB) + 1x 2.5″ HDD bay, plus Gigabit Ethernet, WiFi 6 (802.11ax), Bluetooth 5.2, and rich I/O: 3x USB 3.2 Gen2, USB-C (5Gbps data), and 3.5mm audio jack. BIOS perks include UEFI diskless boot, TPM 2.0, RTC/timed power-on, and auto power recovery—perfect for Johannesburg tech enthusiasts building efficient VoIP, streaming, or DIY automation rigs.

Specifications

•Product Code: AMO2-PRO-R7-8-512-PRO
•Description: Decibell AMO2 Pro Mini Desktop PC
•Model: AMD Ryzen 7 5700U
•Architecture: TSMC 7nm FinFET
•Cores / Threads: 8 cores / 16 threads
Cache:
•L2: 4MB
•L3: 8MB
•Max Clock Speed: Up to 4.3 GHz
•TDP (Power Consumption): 15W
Graphics (GPU)
•Model: AMD Radeon™ Graphics (Integrated)
•Cores: 8-core GPU
•Max Frequency: 1900 MHz
Memory (RAM)
•Type: DDR4 SODIMM (Dual Channel)
•Speed: 3200 MHz
•Capacity: 8GB Up to 64GB
Storage
•SSD Support: 512GB Up to 2TB
•SSD Interface: 1 × NVMe & NGFF / SATA 3.0
•2.5-inch HDD Bay: 1 × Reserved slot
•TF Card Slot: Not supported
BIOS & Security Features
•Real-time clock support
•Timed power-on
•Automatic power-on after power loss
•UEFI diskless boot support
•TPM: Integrated TPM 2.0
Display & Video Output
•HDMI: 1 × HDMI 2.0 (Max 4K @ 60Hz)
•DisplayPort: 1 × DP 1.4 (Max 4K @ 60Hz)
•Multi-display: Dual-screen support (HDMI + DP)
Networking & Connectivity
•Wi-Fi Module: M.2 E Key
•Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 5 & Wi-Fi 6)
•Bluetooth: 4.2 / 5.2 supported
•LAN: 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps adaptive)
Ports & Interfaces
USB Ports
•1 × USB 2.0 Type-A (480 Mbps)
•3 × USB 3.2 Gen2 Type-A (10 Gbps)
•1 × USB Type-C (Data only, 5 Gbps)
Audio
•1 × 3.5mm combo jack (headphone + microphone)
Power
•1 × DC input (5.5mm / 2.1mm jack)
•1 × Power button
•Wireless Antenna
•FPC Antenna for Wi-Fi (2.4GHz + 5GHz) and Bluetooth
Other Features
•Micro SIM: Not supported
•External storage expansion: Not supported
