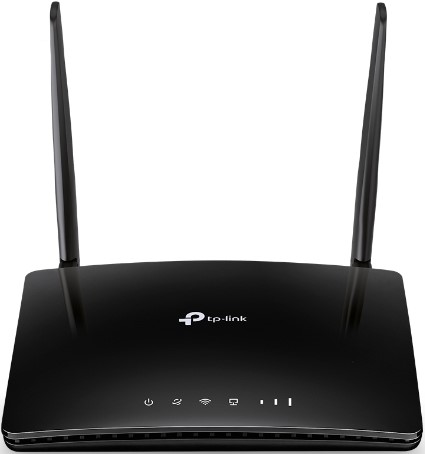

TP Link AC1200 Wireless Dual Band 4G LTE Router

TP-Link AC1200 Wireless Dual Band 4G LTE Router – Up to 150Mbps Download Speed, Connect Up to 64 Wi-Fi Devices, 300Mbps Maximum Speed at 2.4GHz Band, 867Mbps Maximum Speed at 5GHz Band, Sim Card Plug and Play No Configuration, 2 x Detachable LTE Antennas, Wi-Fi Router Mode, Retail Box, 6 Months Warranty.

Product Overview

TP-Link AC1200 Wireless Dual Band 4G LTE Router Overview Transform your connectivity with this portable 4G LTE router, delivering dual-band Wi-Fi speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, powered by a Nano SIM slot and two detachable external antennas for reliable FDD/TDD-LTE coverage across multiple bands. Featuring 3× 10/100 Mbps LAN ports, 1× LAN/WAN port, WAN failover, QoS prioritization, guest networks, and robust security like WPA2-PSK encryption, parental controls, plus VPN support (PPTP/OpenVPN) for secure, versatile operation in 3G/4G or wireless router modes. Compact at 6.85 × 4.9 × 1.32 inches with easy WPS setup and app management, it’s ideal for travel or home backup in Johannesburg—supporting Windows, Mac, and Linux via web interface.

Features

•Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
•AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
•Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
•Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
•Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can’t get a 4G connection

Specifications

•Product Code: ARCHER MR402
•Description: TP-Link AC1200 Wireless Dual Band 4G LTE Router
Interface
•3× 10/100Mbps LAN Ports
•1× 10/100Mbps LAN/WAN Port
•1× Nano SIM Card Slot
•2× External SMA-F Antenna Interface
•Button: WPS/Wi-Fi Button，Reset Button
•External Power Supply: 12V/1A
•Antenna: 2× Detachable External 4G LTE Antennas
•Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
•Frequency: 2.4GHz and 5GHz
•Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity @ 5GHz
•11a 54M: -77 dBm
•11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm
•11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm
•11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm
Reception Sensitivity @ 2.4GHz
•11g 54M: -74.5 dBm
•11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm
•11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
•Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
•WAN Failover: Yes
•Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
•Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
•Quality of Service: Prioritizes network traffic by device or application
•Operating Modes: 3G/4G Router, Wireless Router
•WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
•Management Features: Access Control, Local Management, Remote Management reboot schedule
•DHCP: Server, Client, DHCP Client List, Address Reservation
•Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
•Dynamic DNS: DynDns, NO-IP
•VPN: PPTP VPN, OpenVPN
•Access Control: Parental Control, Local Management Control
•Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter,
•IP and MAC Address Binding
•Protocols: Supports IPv4 and IPv6
•Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
